Lab Exercise 11: 3D Turtle
The purpose of this lab is to give you one more chance to extend your drawing system. You should have a reasonable understanding of how all the pieces fit together, so now we're going to swap out the standard 2D turtle and put in a 3D turtle. All of your 2D turtle programs should continue to work just fine, but now you can make 3D shapes as well. In addition, you'll be able to rotate your completed drawings with the mouse.
The lab consists of three parts.
- First, you need to edit your TurtleInterpreter class to make use of the 3D turtle. Once this is complete, you can try drawing some simple shapes.
- Second, you need to implement the 3D symbols for L-systems so you can draw 3D trees.
- Third, you need to update your Shape class and possibly some of its children to make use of the 3rd dimension.

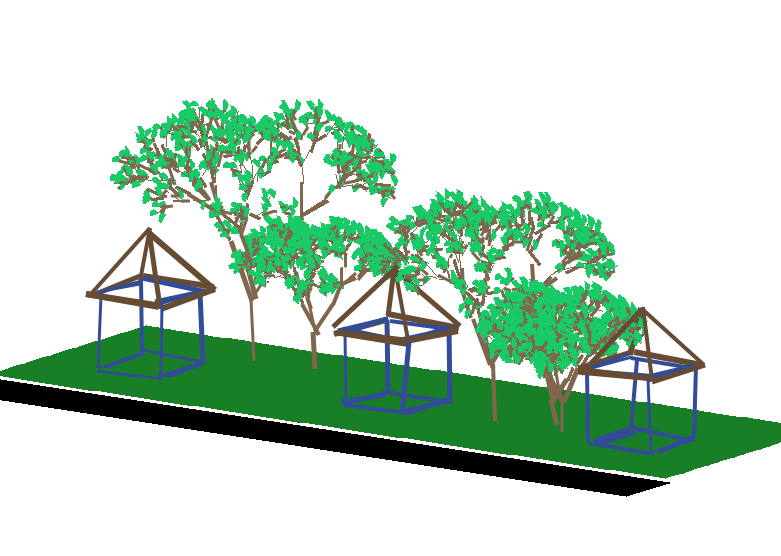

The goal is to be able to make 3D shapes and scenes as easily as 2D. You should be able to create a Cube class, for example, as well as 3D trees and other L-system shapes that work exactly the same way as their 2D counterparts.
- Create a new working folder. Copy your lsystem.py, turtle_interpreter.py, shapes.py, and tree.py files from last week. Label them as version 5. Then download the 3D turtle file (which is documented at the bottom of this page).
One difference between the standard turtle and the 3D turtle is that
the latter is implemented as a class. Therefore, you need to create a
single instance of the turtle object that will be used by all
At the top of turtle_interpreter.py, import turtleTk3D instead of turtle, and create a global variable called turtle and initialize it to None.
Second, before calling any other turtle functions in your __init__ method, but after the test of TurtleInterpreter.initialized, put the following two lines.
global turtle turtle = turtleTk3D.Turtle3D(dx, dy)
The first line tells the function to use the turtle variable in the global symbol table, and the second line creates a new turtleTk3D object. By putting the 3D turtle object in a variable called turtle, expressions like turtle.left(angle) or turtle.forward(distance) still work as expected.
Make the following additional changes to turtle_interpreter.py.
- Edit your hold method so that it calls only turtle.mainloop().
- If you have not already done so, make your '[' and ']' cases store and restore the turtle width in addition to the heading and position.
Edit your orient method so it takes two additional optional arguments:
roll and pitch. The definition should look like:
def orient(self, angle, roll=0, pitch=0)
The function should first call the turtle method setheading with an argument of 0, then roll by the roll argument (e.g. turtle.roll(roll)), pitch by the pitch argument, and yaw by the angle argument.
- If you have a goto method, add an optional parameter zpos with a default value of 0. Then change the turtle.goto call to include zpos as the third argument.
Do the same with the place method. It should have two required
arguments (xpos and ypos) and four optional arguments (angle,
roll, pitch, and zpos). Note that if you set up the arguments
as place(xpos, ypos, zpos=0, angle=None, pitch=0,
roll=0) it will break your prior code that assumes angle
is the third argument. It's probably better to make zpos the
last argument. Give the new arguments (zpos, pitch, and roll)
default values of 0.
The other change to the place method is in the case where angle is not None, call your turtle interpreter's orient function (self.orient) with angle, roll, and pitch as the arguments.
- Create additional turtle interpreter methods called roll, pitch, and yaw, that call the 3D turtle functions roll, pitch and yaw. These functions will look like your existing width or color functions.
- The turtle.position() method now returns the tuple (x, y, z) instead of just (x, y). There are likely some places in your TurtleInterpreter's forward method that need to be updated to handle the z coordinate. In the jitter and jitter3 cases, you probably want to add a random offset in z, in addition to x and y, and make all of your goto calls include the z coordinate.
Add cases in your drawString method for pitch ( & and ^ ) and
roll (\ and /). The & symbol means to execute the pitch method
with a positive angle (down), and ^ should execute the pitch
method with a negative angle (up). The backslash '\' should
execute the roll with a positive angle (right), and the
forward slash '/' should execute roll with a negative angle
Yaw is still + and -.
Note that you will have to use the string '\\' to represent the backward slash character because it is a special character (e.g., '\n' is a newline and '\t' is a tab) .
- The 3D turtle color function works slightly differently from the regular turtle. The primary difference is that it takes as input r, g, b values, a color string, or a single tuple (r, g, b) and it returns only a single color value. You'll need to edit your angle bracket cases '<' and '>' to take into account that there is no pencolor/fillcolor separation.
- You may need to update your code in the turtle interpreter to use functions offered by the 3D turtle. For example, the 3D turtle has position and goto methods, but not pos or setposition.
- When you are done with these changes, try out first test program.
Make the following changes to shapes.py.
- Add three optional parameters to the Shape class draw function. The arguments should be called roll, pitch, and zpos. Given them all default values of 0. The orientation parameter already holds the yaw information.
- Add zpos, pitch and roll to the place call before drawString.
- Run test function two. It is a simple example of how to begin building a 3D scene.
- Update your tree.py file. Add roll, pitch, and zpos to the parameter list of the Tree class draw method, giving them all default values of 0. Then pass the three parameters on to the parent draw function. Then run the test function 3 using one of the L-systems below.
When you are done with the lab exercises, you may begin the project.
Appendix: Turtle3D Documentation
The Turtle3D class implements a 3D turtle abstraction using the Tkinter package.
The default turtle window supports three user operations.
- Once drawing is complete, the user can rotate the image using the first mouse button and clicking and dragging.
- The user can close the window and quit the program by typing Command-q or by typing just q.
- The user can reset the view to the default orientation by typing Command-r or by typing just r.
The Turtle3D class includes the following methods for public use.
__init__: the constructor function has six optional arguments.
- winx (default 800) is the horizontal window size
- winy (default 800) is the vertical window size
- title (default 'Turtle 3D')
- position (default (0, 0, 0) ) is the initial 3D position of the turtle
- heading (default (1.0, 0.0, 0.0)) is the initial forward direction of the turtle
- up (default (0.0, 0.0, 1.0)) is the initial up direction, which defines left and right (yaw) relative to the forward direction. The default values mean that left and right work identically to the standard 2D turtle as long as the turtle does not pitch or roll.
- reset(): deletes all drawing and resets the turtle to its initial position.
- forward(distance): goes forward in the current turtle direction. If the pen is down, it creates a line.
goto(xnew, ynew, znew): The function can take one, two or
three parameters. If the pen is down, it creates a line.
- One parameter: xnew is treated as a two-element tuple (x, y) and the turtle is placed at (x, y, 0).
- Two parameters: xnew and ynew are used and znew is set to 0.
- Three parameters: the turtle is placed at (xnew, ynew, znew).
- left(angle): turn left (yaw) as defined by the current heading and up direction.
- right(angle): turn right (yaw) as defined by the current heading and up direction.
- yaw(angle): go left (positive) or right (negative) relative to the current turtle orientation.
- pitch(angle): go up (positive) or down (negative) relative to the current turtle orientation.
- roll(angle): rotate right (positive) or left (negative) about the current turtle heading.
- width(w): set the width of the pen to w
- color(r, g, b): sets the pen color. Arguments can be the standard X11 color strings defined in rgb.txt or r, g, b values. The first argument can be a tuple (r, g, b) or the color values can be given individually. Color values should be in [0, 1].
- up(): pick up the pen
- down(): put down the pen
- tracer(blah): does nothing (no visible turtle)
- circle(radius, theta): draws a circle of the given radius. The theta argument is optional and permits drawing only the angular fraction of the circle specified.
- position(): returns a tuple with (x, y, z)
- heading(): returns a tuple of two tuples with the current heading and up vectors. ( (hx, hy, hz), (ux, uy, uz) )
- setheading(heading): ideally heading should be two vectors representing the turtle's forward and up directions. If a single scalar is provided, the turtle is set so the turtle is in the drawing plane (up of (0, 0, 1)) and is rotated according to the argument. This gives it the same functionality as the 2D turtle.
- fill(q): if q is True, the turtle will begin to store points until the fill function is called with False as the argument. Then it fills in the area defined by the points. The turtle must visit at least three points after fill(True) is called and before fill(False) is called in order to generate a polygon.
- nudge(n): allows the user to adjust the turtle's coordinate system by nudging the forward vector in the specified direction. The argument n should be a 3-element sequence (list or tuple). A value like (0.0, -0.1, 0.0) nudges the turtle's orientation down (i.e. like gravity).
- cube(distance): takes one optional parameter (size) and draws a cube.
- setRightMouseCallback(func): takes one argument, which should be a function with an argument (other than self for a class method) called event. The mouse click location will be in event.x and event.y. Note that the click location will be in window coordinates, not turtle coordinates.
- window2turtle(x, y): takes in window coordinates (like those in event.x and event.y above) and returns a tuple (x', y', 0) with the corresponding turtle coordinates in the default view.
- hold(): goes into a main loop waiting for user input.
- wait(): goes into a main loop waiting for user input.
- updateCanvas(): updates the Canvas to draw any new shapes.
