Project 10: Collisions with Rotation
The focus on this project is to give you more experience writing child classes, working with equations and code, and integrating user input.
- Create a RotatingBlock class
The first task is to create a RotatingBlock class. You can add it to your physics_objects.py file or create a new file; the choice is yours. The class should be called RotatingBlock, and it should inherit from the Thing class, just like Ball, Block classes.
- Define the __init__ method
The RotatingBlock.__init__ method should have the following parameters. Only the win parameter should be required.
Parameter Purpose win A reference to a GraphWin object x0 The x coordinate of the center of the block. y0 The y coordinate of the center of the block. width The horizontal extent of the block. height The vertical extent of the block. Ax The x coordinate of the block's center of rotation, with the default value of None. Ay The y coordinate of the block's center of rotation, with the default value of None.
Using the same terminology as for rotating lines, [x0, y0] is the anchor point for positioning the block (i.e., the center of its rectangular shape), whereas [Ax, Ay] refers to the anchor point for the rotation of the block (i.e., the point around which the block rotates). Also, as with the RotatingLine class, if there are no values input for Ax and Ay, we'll use [x0, y0] as the anchor point for the rotation.
As with the Ball class, the first action in the __init__ method is to call the parent Thing.__init__ method. Specify the type as the string "rotating block", and pass in x0 and y0 as the position. Next, assign the parameters width and height to two fields width and height.
Next, create the list of vertex points (self.points), which should be a list of four 2-element lists that represent four (x, y) points. The coordinates of the block should be (-width/2, -height/2), (width/2, -height/2), (width/2, height/2), and (-width/2, height/2).
The remaining unique fields should be identical to the ones you created in the RotatingLine class: angle, rvel, anchor, and drawn. Note that scale and vis are already created in the Thing parent class.
- Write the refresh, get, and set methods
Make the methods refresh, getAngle, setAngle, getAnchor, setAnchor, getRotVelocity, setRotVelocity, and rotate. These should be very similar, if not identical to the RotatingLine class from lab. The refresh method will use the render method (defined next). Any set method that changes the orientation or size of the RotatingBlock needs to call refresh after updating the object's field.
- Write a render method for RotatingBlock
Make the render method. Again, this will be identical to the RotatingLine version except that the last step will be to create a graphics Polygon instead of a Line, using the list of rotated points. At this point, you can run the first test function. You may need to modify the test code, depending on where you wrote your RotatingBlock class. The block should spin around its center.
- Write an update method for RotatingBlock
Create an update method in the RotatingBlock class, since the Thing.update method does not include rotational velocity. The update method needs to take self and dt (time step) as arguments. The update method should first calculate how much the angle changes during the time step (self.rvel * dt) and assign that to a local variable (e.g. da). If the da value is not equal to zero, then call the rotate method, passing in da as the argument. Then, call the update method in the Thing class, passing in self and dt.
Once you have the update method done, try out the second second test function. Since the anchor point is different, the block should appear to rotate around the center of the screen once.
- Test RotatingBlock with collisions
If you want to incorporate the rotating line in your scene, you can make it collide by giving it a small height and using the ('ball', 'rotating block') collision function.
- Define the __init__ method
- Make a simple obstacle course with rotating objects
Create a very simple obstacle course with one or two rotating objects. Launch one or more balls into the scene.
Create a screen video of your simple obstacle course in action and include a link to it on your wiki.
- Make a scene with user interaction

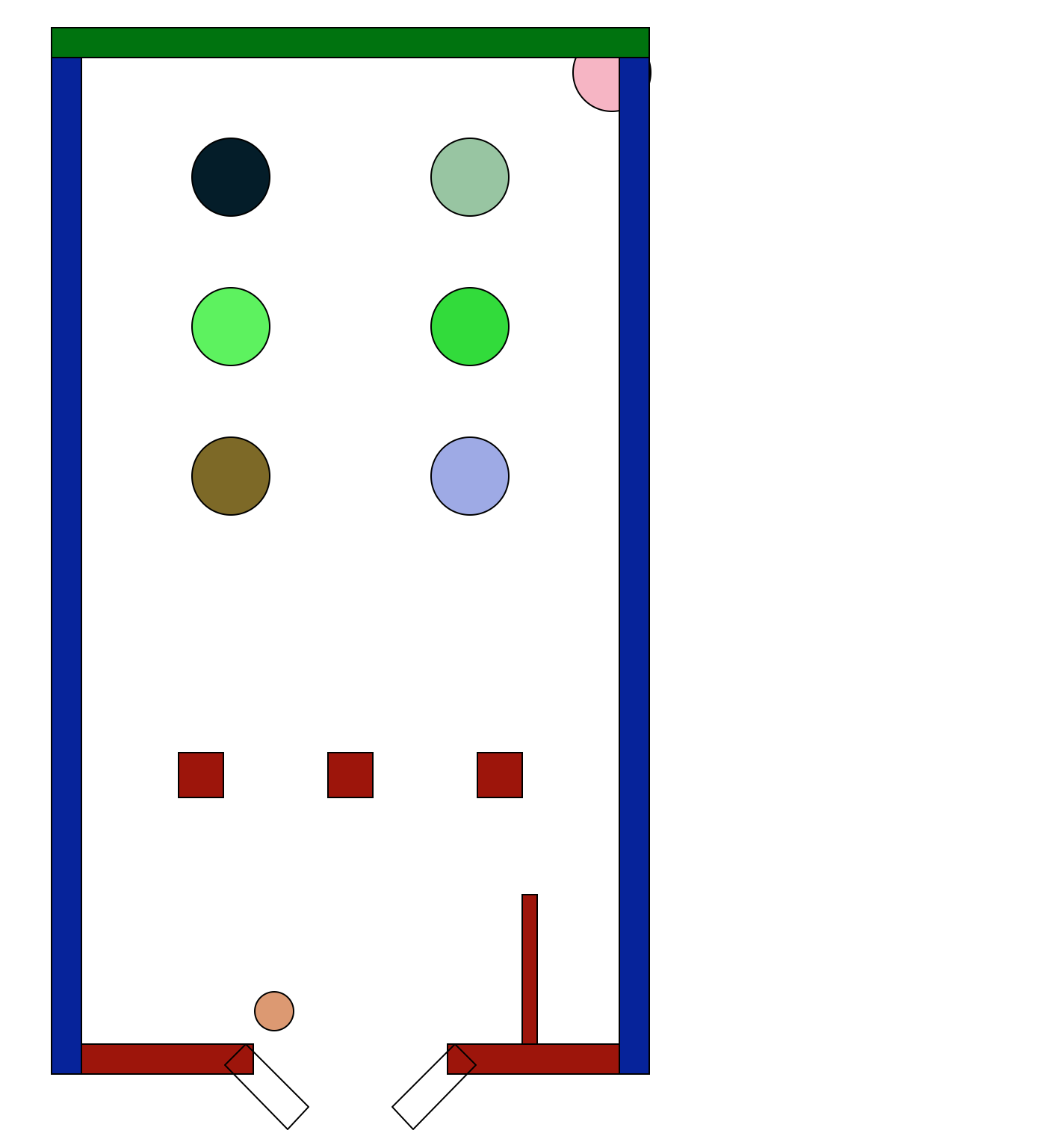

Create a scene that includes at least one rotating object, at least one instance of each of your other objects, and incorporates some form of user interaction. For example, add paddles to your pinball-style scene from last week that activate when the user hits the space bar. Make something very simple that responds to user input before doing anything more complex.
Create a screen video of your reactive scene in action and include a link to it on your wiki.
- How did inheritance help you on this project?
- What is the difference between the position anchor point and the rotational anchor point?
- What is the difference between an object field and a local variable in a function?
- What is your favorite rotating amusement ride?
Extensions are your opportunity to customize your project, learn something else of interest to you, and improve your grade. The following are some suggested extensions, but you are free to choose your own. Be sure to describe any extensions you complete in your report.
- Create a second rotating object that consists of multiple graphics objects.
- Create more elaborate spaces with more complex interaction and capture interesting additional simulation videos. Need inspiration? Check out this project.
- Create more shape classes, or more complex shapes, and show that they collide and simulate appropriately.
- This simulation does not take into account masses. A challenging extension would be to modify the collision code so that when two things collide the velocity changes take into account the masses. (Conservation of momentum, energy, and geometry. Feel free to approximate.)
- Create a separate scene like putt-putt golf and let the user shoot the golf ball (see the project linked above).
