Project 7: CPU
The purpose of this project is to build a simple CPU that integrates all the necessary aspects of a general-purpose computer. This is a two-week project. You will need to demonstrate your functional alu with the alu test program during the labs on November 6-7.
Note: you may design your own CPU however you like, so long as it implements the instruction set specified in the design document. You may, after talking with the instructor, even choose to discard the specific machine language and design your own, so long as the computer supports at least the set of instructions specified. Either of these options will be considered major extensions and your project will be graded out of 30.
The overall task is to create a functional CPU, using a ROM for the program memory, a RAM for the data memory, and a separate ALU circuit.
Examine the CPU Design before starting.
Make a new project for lab 7 in a new folder. I'll refer to the project and top-level circuit as cpu.
Using the Tools:MegaWizard Plugin Manager, create a 1-port ROM that has 256 words of 16 bits each. I'll refer to this circuit as ProgramROM. Tell it to initialize the ROM using this MIF file. This step will create a VHDL file that you need to add to your project.
Using the Tools:MegaWizard Plug0in Manager, create a 1-port RAM that has 256 words of 16 bits each. I'll refer to this circuit as DataRAM, Tell it to initialize the RAM using this MIF file. This step will create a VHDL file that you need to add to your project.
- Define the CPU entity
Create a top-level VHDL file called cpu.vhd with an entity called cpu. Your cpu entity should have a clock (std_logic), reset (std_logic), input port (std_logic_vector(7 downto 0)), and an output port (std_logic_vector(15 downto 0)). You can use the 4-state Moore machine template, if you wish.
To use the cpu test bench for simulation, you will need to include the following signals to your cpu port statement. The port statement that matches the cpubench usage is below.
port ( clk : in std_logic; -- main clock reset : in std_logic; -- reset button PCview : out std_logic_vector( 7 downto 0); -- debugging outputs IRview : out std_logic_vector(15 downto 0); RAview : out std_logic_vector(15 downto 0); RBview : out std_logic_vector(15 downto 0); RCview : out std_logic_vector(15 downto 0); RDview : out std_logic_vector(15 downto 0); REview : out std_logic_vector(15 downto 0); iport : in std_logic_vector(7 downto 0); -- input port oport : out std_logic_vector(15 downto 0)); -- output port
When you write the body of the architecture, don't forget to assign the various signals to their matching outputs. The PC should be assigned to PCView, the IR should be assigned to the IRview, and so on. You will also need to be sure to assign your internal output register (OUTREG) signal to oport.
Create component statements for both the ProgramROM and DataRAM in the architecture header.
- Write the ALU
Create an arithmetic logic unit VHDL design file, alu.vhd. Add the file to your project. You can use this template as the basis for the ALU circuit design. The circuit is completely asynchronous, and it does not require any additioanl signals beyond what is in the template in order to build the circuit.
There are four condition bits that need to be set, based on the ALU operation.
- Zero: cr(0) should be set to '1' if the ALU operation resulted in a zeros for bits 15 downto 0 of the result.
- Arithmetic overflow: cr(1) should be set to '1' if an addition or subtraction operation resulted in an overflow. 2's complement overflow occurs when the two operands are the same sign and the result is a different sign.
- Negative: cr(2) should be set to '1' if the sign bit of the result is '1' (negative).
- Carry out: cr(3) should be set to '1' if a '1' was shifted out of the left or right side of the input, or if an arithmetic operation resulted in a carry.

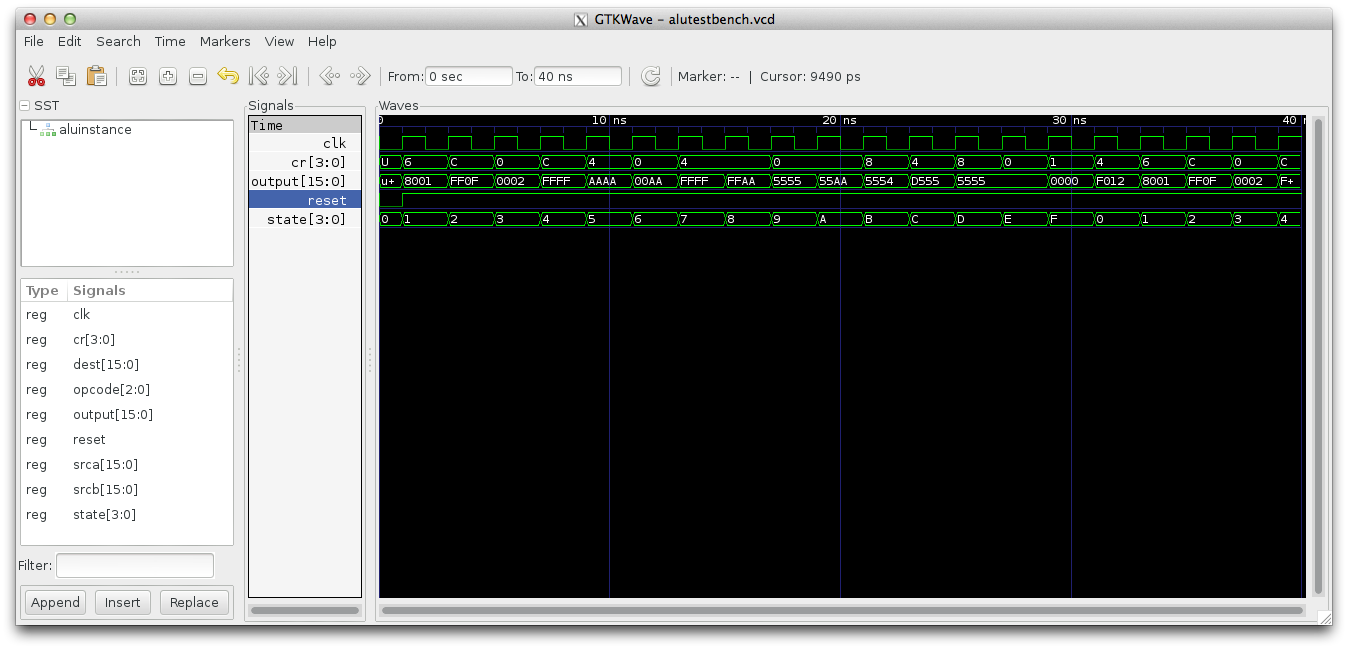

When you have your alu design complete, test it using this testbench program. It should produce the output below using ghdl/gtkwave.
ghdl -a alutestbench.vhd alu.vhd ghdl -e alutestbench ghdl -r alutestbench --vcd=alutestbench.vcd gtkwave alutestbench.vcd &
- Create the CPU state machine
As noted in the CPU design, you probably want to use a 9-state state machine for your CPU. The first state is a startup state, and the final state is a halt state. After eight clock cycles, this state should move to the fetch state. You will need a small internal counter (3 bits) to implement the pause in the start state. The state machine should never return to the start state unless it is reset.
The remaining states are fetch, execute-setup, execute-process, and execute-write. Set up your overall state machine structure to follow this model. Each state always leads to the next state in the process, with the execute-write state going back to the fetch state.
Set up your skeleton nine state state machine, putting in only the state transitions for now. No state should go to the halt state (yet).
- Define the internal signals
Create the remaining internal signals you need for your CPU. There are a lot. Following the cpu diagram, there should be a signal for every register, including the condition register. In addition, you will need a signal to represent the two ALU input buses and the ALU output bus.
You will also want signals for the output port register (OUTREG), the ROM data-out wire, the RAM data-out wire, the RAM write-enable wire, the ALU opcode, and the ALU condition argument.
- Port map the associated elements
Port map the ProgramROM, DataRAM, and ALU circuits into your cpu. The clock, PC and ROM data wire should map to the ROM clock, address, and output.
The MAR and MBR should map to the RAM address and data-in parameters. The RAM data wire, RAM write enable wire, and clock should map to the RAM output, RAM write enable (wren) and clock.
The srcA, srcB, and dest parameters should map to the ALU input buses and the output bus, respectively. Map the ALU opcode and condition outputs to their respective signals.
- Implement the CPU
- Reset case
If the reset button is activated, set the registers PC, IR, OUTREG, MAR, MBR, RA, RB, RC, RD, RE, SP, and CR to zeros. The state should be reset to the startup state and the small counter should be reset to zeros.
- Start state
The startup state should increment the small counter and stay there until it reaches 7. Then it should move to the fetch state. (this is not a for loop)
- Fetch state
The fetch state should copy the ROM data wire contents to the IR, increment the PC, and move to the execute-setup state.
- Execute-Setup state
The execute-setup state should set up each of the instructions.
- For the load and store instructions, move the correct RAM address into the MAR. If IR(11) is set, use the 8 low bits of the IR plus register E (RE). If IR(11) is not set, just use the low bits of the IR. You will also need to put the data to write into the RAM into the MBR.
- For the unconditional branch, set the PC to the low 8 bits of the IR.
- For the conditional branch, check the condition flag specified in the instruction and move the low 8 bits of the IR to the PC if the condition is true.
- For the CALL instruction, set the PC to the low 8 bits of the IR, set the MAR to the SP, set the MBR to the concatenation of four zeros, the CR, and the PC. Then increment the stack pointer.
- For the RETURN instruction, set the MAR to the SP-1 and decrement the SP.
- For the push operation, put the current vaue of the SP into the MAR, increment the SP, and put the value specified in the source bits into the MBR.
- For the pop operation, put the value (SP-1) into the MAR and decrement the SP.
- For the binary ALU operations (add, sub, and, or xor) set up srcA and srcB.
- For the unary ALU operations (shift, rotate) set up srcA and put the direction bit in the low bit of srcB.
- For the move operation, set up srcA, which will come either from a register or be a sign extended value from the immediate value bits of the IR (bits 10 downto 3).
- Execute-ALU state The execute-ALU state should set the RAM write enable signal to high if the operation is a store (opcode 0001, or integer 1), a push, or a CALL.
- Execute-MemWait state The execute-wait state should do nothing. All instructions can pass through this state, but it is required only for instructions that are accessing the RAM (POP, LOAD, and RETURN).
- Execute-Write state
The execute-write state should handle the final stage of the various operations. At the beginning of the state, it should set the write enable flag to '0'.
- For the load operation, it should write the contents of the RAM data wire to the specified destination register.
- The store, unconditional branch, conditional branch, call, and push operations require no action.
- The return operation requires that the proper parts of the RAM data wire be written to the PC and CR.
- For the pop operation, it should write the value of the RAM data wire to the destination specified in the instruction.
- For the write to the output port, it should set the output port register OUTREG to the specified value.
- For the load from the input port, it should write the input port value to the specified register.
- For the binary and unary arithmetic operations (add, sub, and, or xor, shift, rotate), it should write the destination value to the proper register. It should also assign the ALU condition flags to the condition register [CR].
- For the move operation it should write the destination value to the proper register and set the condition register [CR] from the ALU condition flags.
- Execute-return states The execute-return-pause states, there are two of them, are equired for RETURN instructions so that the next instruction can be accessed from the program ROM before heading back to the fetch state. On the RETURN instruction needs to use these two states.
- Reset case
- Test the CPU

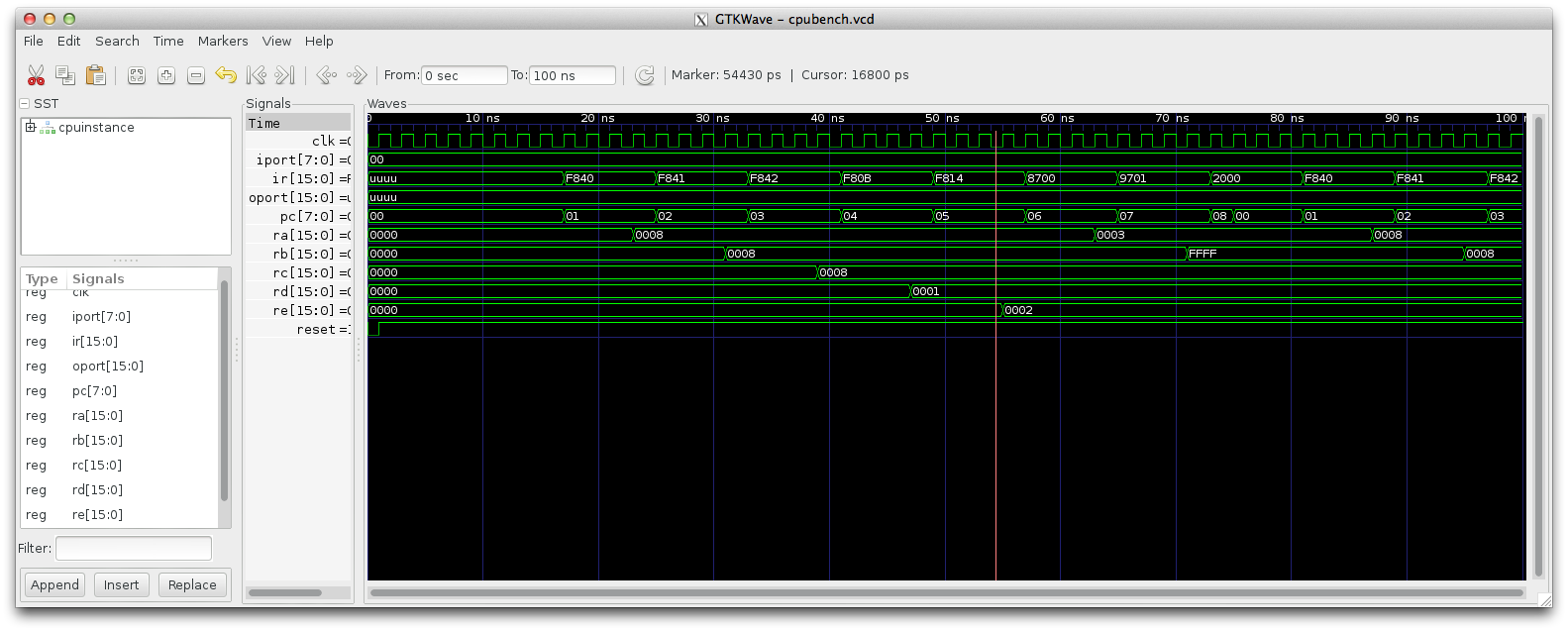

Test your CPU using the program given in the programROM.mif file above and using the cpubench.vhd test file. You should get a simulation like the following. Note that on the second command below you need to make sure the filenames match your own.
You can use the following single step command to compile and simulation using ghdl
ghdl -c --ieee=synopsys -fexplicit --work=altera_mf /export/opt/altera/12.1/quartus/eda/sim_lib/altera*.vhd cpubench.vhd cpu.vhd alu.vhd programROM.vhd DataRAM.vhd -r cpubench --vcd=cpubench.vcd
gtkwave cpubench.vcd &
- Test the stack operations and a function call
Here are some more test programs you can try out. Read the .mif files to understand what they are doing and what you should expect for outputs.
- Have your CPU generate the Fibonnaci sequence
Write a program for your computer that creates the first 10 values of the fibonnaci sequence. Try to do it with a for loop. Simulate your circuit and demonstrate that it works.
- Download your CPU to the board and demonstrate it works properly. No credit for this extension unless you somehow document it working as part of your report. You'll likely want to slow it down.
- Write more programs, such as an unsigned multiply program or a program that includes functions (CALL/RETURN). This is the best extension. Get yourself used to writing programs on this CPU.
- Write the fibonnaci sequence program using recursion.
- Write a program using something like Python that can generate an MIF file from some other, more easily readable, format.
- Be creative with the use of the input signal.
Create a wiki page with your report. For each task, write a short description of the task, in your own words.
- Include a description of your top-level design.
- Include the initial contents of both your RAM and ROM.
- Include a screen shot of all simulations.
- Describe the testing you undertook to prove the circuit works.
- Include a description, and pictures, of any extensions.
Give your wiki page the label cs232f19project7.
Put your VHDL files in a project7 directory in your private subdirectory on the courses server. Please put just the vhdl and mif files on the server.
