Lab 2: Programming Hardware

The purpose of this lab is to get you working with larger, pre-built modules in Quartus and to begin programming the DE1 hardware boards.


  1. Setup a New Project

    Start Quartus. Follow the new project wizard and create a new directory for project 2. Call your first project flash and put it in a subdirectory of your project2 directory. This is the name of the project and the top level entity, but it will not be the only design file you create for this project. You will be placing multiple design files into the same project and directory so you can include one or more designs into the top-level entity.

    During the project creation, set the Device to a Cycline II and set the device model to EP2C20F484C7.

  2. Create a New VHDL File Using a Template

    The next step is to create a simple digital circuit with four inputs and four outputs. If we interpret the four binary inputs as a number, Each output should be one for a sequence of four consecutive numbers (e.g. 0 to 3).

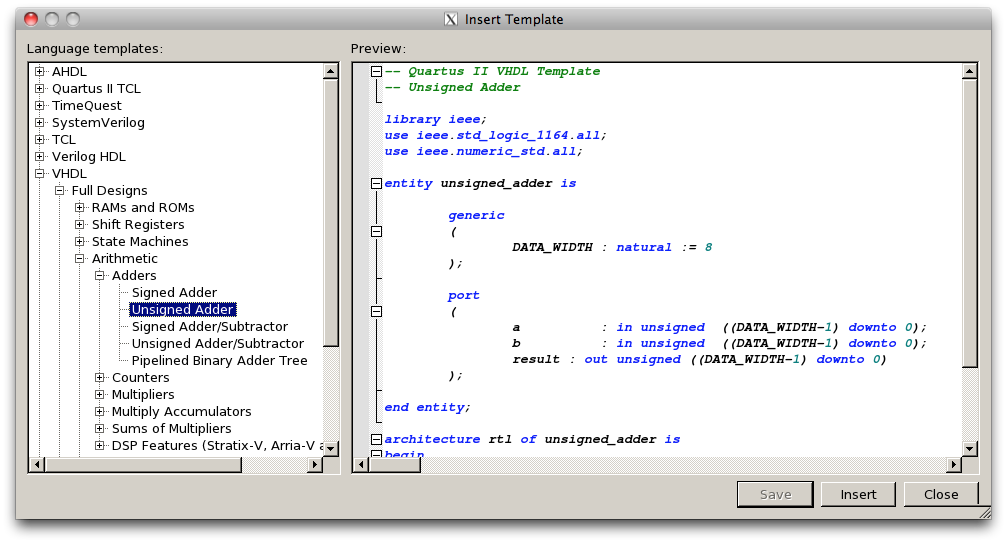

    Select File->New and create a new VHDL file. VHDL is a programming language for specifying hardware configurations. Use the Edit->Insert Template option to select the Unsigned Adder full design template.

  3. Customize the Template

    Change unsigned_adder to boxdriver in both the entity and architecture declarations. Then save the file as boxdriver.vhd.

    For all VHDL files, be sure to make the filename match the entity name.

    Simplify the template so it has only a single input signal (delete input b). Then remove the generic block and make both the input and output be std_logic_vector (3 downto 0). The inputs are now standard logic vectors with 4 bits, indexed from 3 down to 0, with index 3 being the most significant bit.

  4. Start Building the Circuit

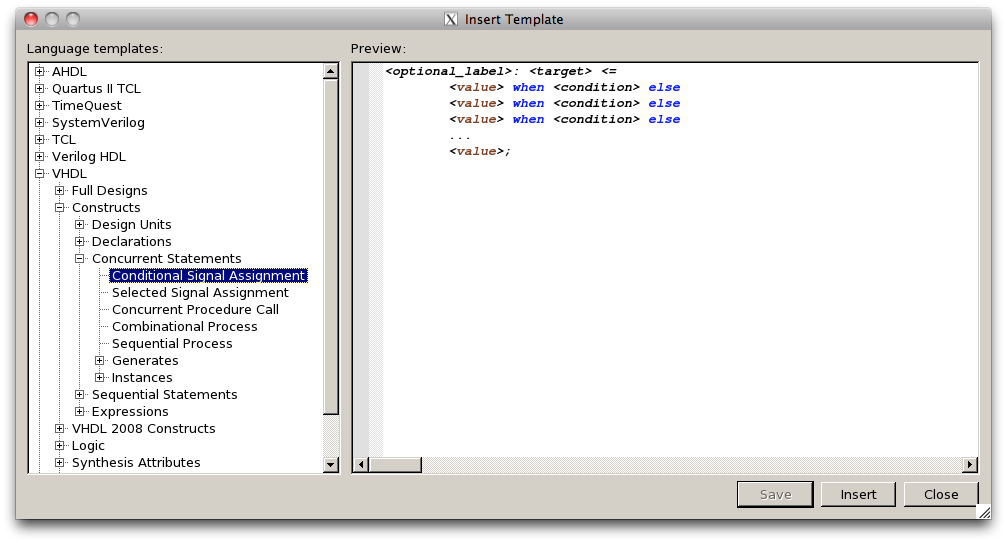

    Delete the addition line in the architecture block and then insert the template for a conditional signal assignment using Edit->Insert Template.

    Make the receiving signal be the first bit of the result output signal: result(0). Make the right side assign a '1' to result when a is "0000", "0001", "0010", or "0011" and otherwise '0'. The expression should look like the following.

    result(0) <= '1' when a = "0000" or a = "0001" or a = "0010" or a = "0011" else '0';

    The above is called a conditional signal assignment. This statement is an asynchronous statement, which means it is running continuously, in parallel to any other statements in your program. Whenever the condition variable a on the right side changes, the value of the left side is updated.

    Do the same for the other three result outputs, but make each one a '1' for a different set of four consecutive counter values. So result(1) should be '1' when the input a is equal to 4, 5, 6, or 7 (binary).

  5. Add the File to the Project

    Select Project->Add current file to add the VHDL file to the current project. Then select File->Create symbol file so that you can include the project in other project files. This may require you to fix any bugs in the code. If you just want to check syntax on a VHDL file, select Processing->Analyze File.

  6. Simulate the Circuit

    Simulate the box driver file. Download this test bench file and take a look at it. Then use ghdl to compile it and your boxdriver.vhd file to make a waveform file.

    ghdl -a boxtest.vhd boxdriver.vhd
    ghdl -e boxtest
    ghdl -r boxtest --vcd=boxtest.vcd
    gtkwave boxtest.vcd &

    Take a look at the output and make sure you understand what it says about your circuit before continuing.

  7. Create the Top-Level Design File

    Create a new BDF file. Add 2 input pins and 4 output pins to the design. Name the two input pins clock and reset. Name the four output pins HEX0[2], HEX0[3], HEX0[4], and HEX0[6].

    Add an lpm_counter device: megafunctions->arithmetic. Set up the clock to be 4-bits with a clock and asynchronous clear/reset as the only inputs. After inserting it into your design, hook up the clock and reset signals from the input pins.

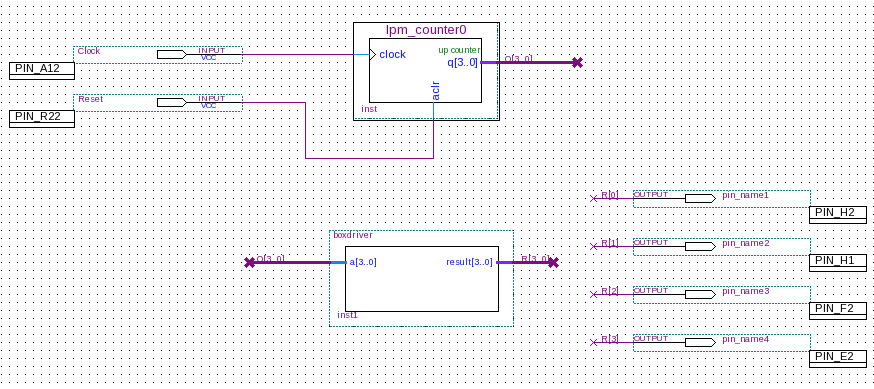

    Add the boxdriver symbol to the graphic design file. Hook the counter outputs to the boxdriver inputs. Then hook the four boxdriver outputs to the four output pins. The circuit should look like the diagram below.

    Save the file as flash.bdf, add the file to the project and then compile the project.

  8. Make Pin Assignments for the Board

    Back in Quartus, go to Assignments->Pin Planner. We need to make sure the input and output pins are connected intelligently when we download the design to hardware.

    You will want to have the DE1 User Manual handy when assigning pins.

    Use the popup menus (or just type the names) in the location field for each pin to set them to the desired values, or just type the pin name (e.g. R22) into the pin field. Connect the clock to the first push button. Connect the reset to the second push button. Connect the four outputs to four LEDs.

  9. Program the Board

    Use the Tools->Programmer to download your circuit to the board. If the programmer says 'No Hardware', then select Hardware Setup and in the popup menu select USB blaster. Test out your circuit by holding down the reset push button (which is 0 when pressed) and then push the clock input.

When you have completed the lab assignment, go ahead and get started on the second project.
