CS 232: Project 4

Project 4: Programmable Lights

Due Monday 11 October 2021

Purpose: The purpose of this project is to build a very simple programmable light display. We will define a machine model with a small instruction set and write a state machine to implement it.

The project (excluding the testbench file used for simulation) uses two entities - lights.vhd and lightrom.vhd. lights.vhd implements a state machine that uses lightrom as a component. lightrom implements the read-only memory that defines the program executed by lights.vhd. There are several internal signals (PC, etc.) that will be explained below in the detailed instructions.)

Tasks

The programmable light display will be a simple state machine that can execute eight possible instructions and read a sequential program that is 16 instructions long. The state machine has one register, the light register [LR], which holds 8-bits. The eight possible instructions and their bit codes are as follows.

Code	Meaning
000	Load "00000000" into the LR
001	shift the LR right by one position, fill from the left with a '0'
010	shift the LR left by one position, fill from the right with a '0'
011	add 1 to the LR
100	subtract 1 from the LR
101	invert all of the bits of the LR
110	rotate the LR right by one position (rightmost bit becomes leftmost bit)
111	rotate the LR left by one position (leftmost bit becomes rightmost bit)

Setup
Start by creating a project in Quartus (or a project 4 directory if you aren't using Quartus). I'll refer to the project as lights for the top level entity.

Create a ROM to hold a program

Create a simple read-only memory [ROM] using VHDL. Make a new VHDL file and drop in a template for a complete design such as the unsigned adder. Remove the generic part of the entity statement and rename the entity as lightrom in both the entity and architecture statements. Save the file as lightrom.vhd and add it to the current project.

The lightrom should take one input signal addr that should be a 4-bit std_logic_vector. This is the address of the instruction to return. It should have one output signal data that should be a 3-bit std_logic_vector. This is the instruction to be executed.

The content of your architecture should be a single conditional signal assignment. You can use the following for testing. Later, you will need to write your own program. The 3-bit values stored at each address location are the program.

   data <=
      "000" when addr = "0000" else -- move 0s to LR  00000000
      "101" when addr = "0001" else -- bit invert LR  11111111
      "101" when addr = "0010" else -- bit invert LR  00000000
      "101" when addr = "0011" else -- bit invert LR  11111111
      "001" when addr = "0100" else -- shift LR right 01111111
      "001" when addr = "0101" else -- shift LR right 00111111
      "111" when addr = "0110" else -- rotate LR left 01111110
      "111" when addr = "0111" else -- rotate LR left 11111100
      "111" when addr = "1000" else -- rotate LR left 11111001
      "111" when addr = "1001" else -- rotate LR left 11110011
      "010" when addr = "1010" else -- shift LR left  11100110
      "010" when addr = "1011" else -- shift LR left  11001100
      "011" when addr = "1100" else -- add 1 to LR    11001101
      "100" when addr = "1101" else -- sub 1 from LR  11001100
      "101" when addr = "1110" else -- bit invert LR  00110011
      "011";                        -- add 1 to LR    00110100

Create the control circuit to execute the program
1. Begin a VHDL state machine
  Create a new VHDL file lights.vhd. Use the full design template for the Moore state machine. Modify the entity and architecture statements to use lights as the name of the circuit.
2. Define the control circuit port statement
  The entity port statement should have four signals. The inputs should be a clock and a reset, both type std_logic. The outputs should be a lights signal that is an 8 bit std_logic_vector and a signal called IRView that is a 3-bit std_logic_vector. If you wish, you can add an output signal called PCView that would be a 4-bit std_logic_vector. The IRView and PCView signals will let you monitor the values of the IR and PC registers. The lights output is the output signal that will drive the LED display on the board.

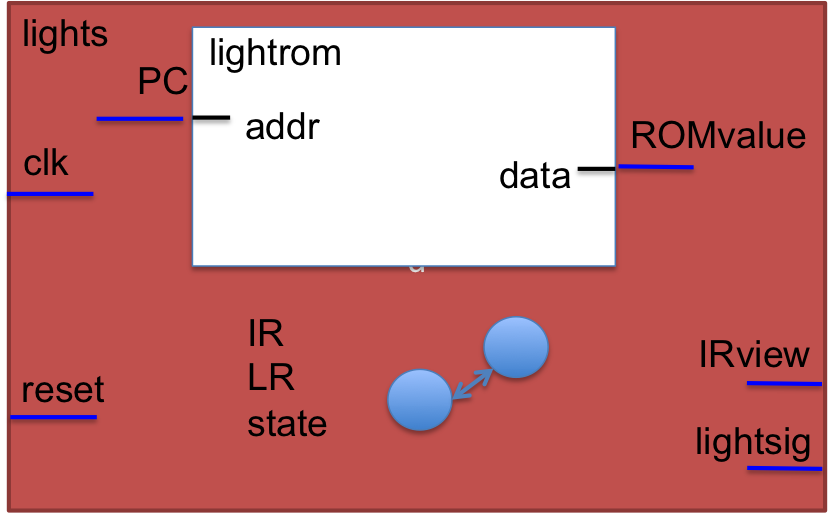

3. Define the internal signals
  The lights circuit needs four internal signals. These should be declared inside the architecture, before the begin statement. The signals are: IR, a 3-bit std_logic_vector; PC, a 4 bit unsigned; LR, an 8 bit unsigned; ROMvalue, a 3-bit std_logic_vector; and state which is of type state_type.

  When using the unsigned type, you will need to add a use statement to the top of your file that imports the numeric_std package to define it.
```
use ieee.numeric_std.all; -- defines the unisgned type
```
4. Define the state machine
  The state machine will have only two states: sFetch and sExecute. The sFetch state should assign ROMvalue to the IR, add one to the PC and then set the state to sExecute. The sExecute state should use a case statement on the value of the IR and execute the proper action given the machine instruction table above. Each case should consist of a single signal assignment statement to LR.<

  The reset condition should set the PC, IR and LR to all zeros and the state to sFetch.
5. Connect the internal signals to the output signals
  Using concurrent signal assignments, outside the main state machine process, assign the IR to the IRview output and assign the LR to the lights output. When you assign the LR to the lights output you will need to cast it to a std_logic_vector, as below.

  lights <= std_logic_vector(LR);
Connect the ROM to the control circuit
Right after the architecture statement, add the following template.
```
component lightrom
    <port statement>
end component;
```
Copy the port statement from the lightrom circuit and paste it into the component statement in place of <port statement>.

In the body of the light architecture, make an instance of the lightrom using the port map statement. (There are details in the lab instructions, or, if you are using Quartus, you can use the component instantiation template via VHDL->Constructs->Concurrent Statements->Instances.) Connect the addr input to the PC signal, cast as a std_logic_vector. Connect the data output to the ROMvalue signal.
Simulate the circuit

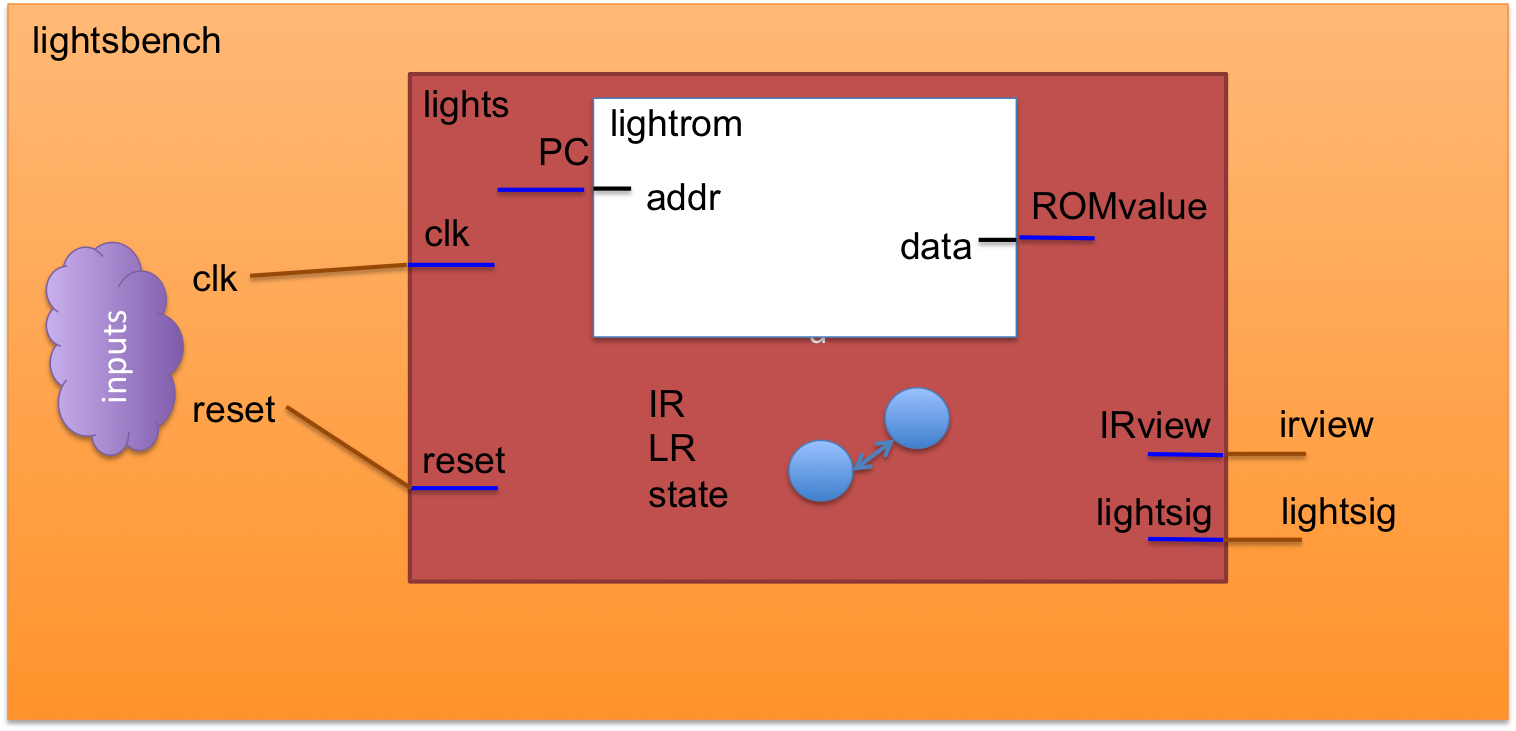

To simulate the input for the circuit, we need a testbench file (lightsbench)

Download the following lightsbench.vhd test file and save it in your working directory. Then open a terminal, cd to your working directory and run the following commands.
```
ghdl -a lightsbench.vhd lights.vhd lightrom.vhd
ghdl -e lightsbench
ghdl -r lightsbench --vcd=lightsbench.vcd
gtkwave lightsbench.vcd &
```

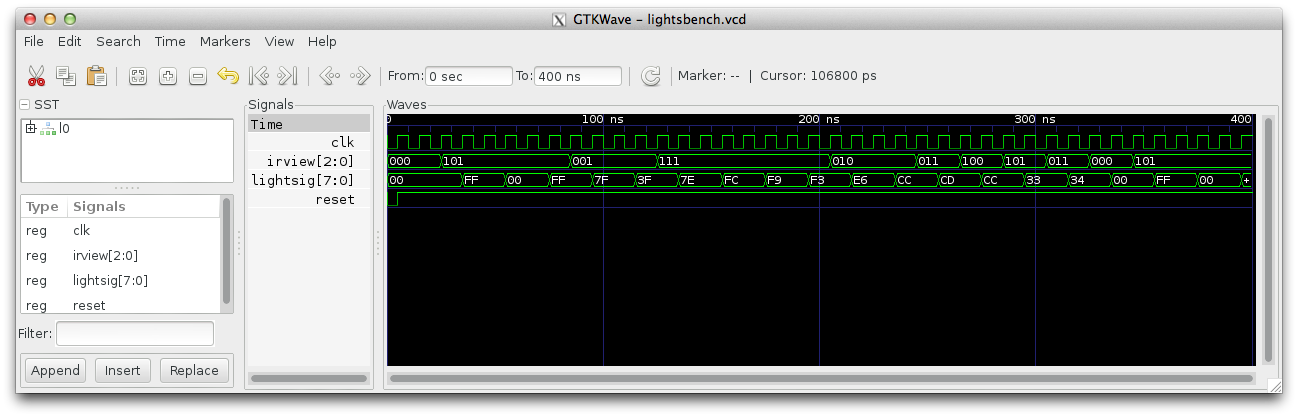

After inserting the signals and zooming the view to fit, you should get a result like the following.
Demonstrate the circuit
If you are using the DE1 board, demonstrate the circuit there.
+ (more detail)
Set up the pins so the light signal drives 8 of the green lights. Set up the IRview signal so it lights up three of the red lights. Connect the clock to the 24 MHz clock (pin A12) and the reset to the right push button (pin R22).

Before testing your circuit on the board, you will need to slow down the circuit. Add the following process and assignment to your architecture.
```
  -- used to slow down the clock
  process(clk, reset)
    begin
      if reset = '0' then
        counter <= "0000000000000000000000000";
      elsif (rising_edge(clk)) then
        counter <= counter + 1;
      end if;
  end process;

  slowclock <= counter(24);

```
Add the following to your set of internal signal declarations.
```
  signal slowclock : std_logic;
  signal counter: unsigned (24 downto 0);
```
Then modify your main state process sensitivity list to slowclock instead of clk. (Your process was probably something like process(clk, reset). Change that to process(slowclock, reset). Also, change the rising_edge test from clk to slowclock. Now your state machine is running 32 million times slower than the clock. You can adjust the speed of your circuit by assigning different bits from the counter to the slowclock signal.

Run the circuit on the board and take a movie of it to link to in your Wiki report.

Note: when you switch back and forth between testing in ghdl and testing on the board you need to either bypass the counter (ghdl) or use the counter to slow down the clock (board). You can bypass the counter by changing the slowclock assignment statement to the following.

slowclock <= clk;
If you are not using the DE1 board, demonstrate the circuit with the vcd_movie animation. Map the light signal to 8 of the green lights. Map the IRview signal to three of the red lights. Take a movie of the animation to link to in your Wiki report.
Write two programs for your circuit
Write two different programs of 16 instructions each by copying and modifying the lightrom circuit. Be sure to save copies of your work in different files so you can demonstrate them later. Test out your programs and include videos in your report. You can also simulate your programs using the lightsbench test file. Include your programs in your report along with a description of what they are supposed to do.

Extensions

Make longer programs.
Add instructions to the system. Make branch instructions, for example.
Add a hold/free button to the display.
Add a button that lets you speed up or slow down the display.
Be creative.

Report

Create a wiki page with your report. For each task, write a short description of the task, in your own words.

Include a description of your top-level design.
Include the two programs you wrote using the simple instruction set. Please do not include your other VHDL design files in your report. Describe what you intended the programs to do.
Include a picture, or preferably a video, of your circuit in simulation.
Describe the hardware testing you undertook to prove the circuit works.
Include a description, and pictures, of any extensions.

Handin

Give your wiki page the label cs232f21project4.

Put your VHDL files in a folder called project4 in your private subdirectory on Courses. Be sure your code is properly commented, including having your name at the top of each code file.
